Design Documentation Types
Blueprint AV’s meticulously crafted design documentation includes:

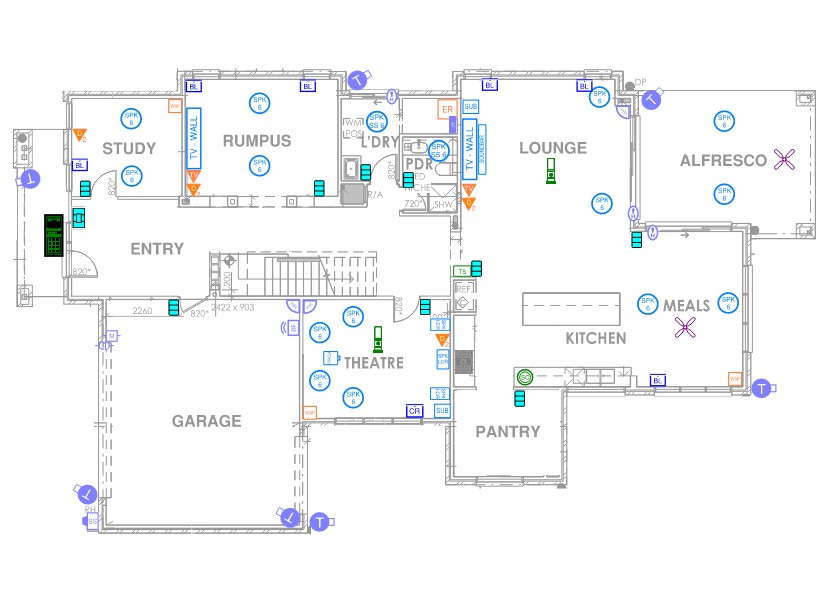

Floorplans
Designing fully customized technology and lighting control layouts that are meticulously tailored to perfectly align with the unique vision of your technology proposal.

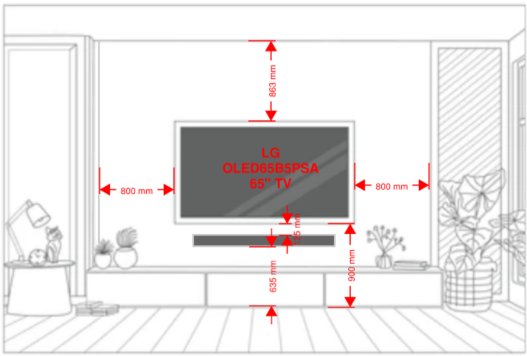

Elevations
Detailed elevations offering precise, scaled views and essential details for construction and design, ensuring seamless integration of technology into the proposed living space.

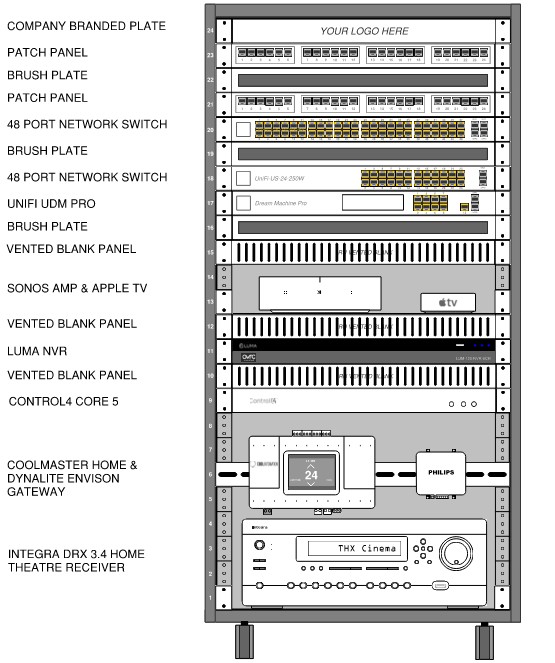

Layouts
Comprehensively detailed equipment rack and lighting control enclosure layouts which specify the locations of all hardware to ensure your vision is translated accurately on-site .

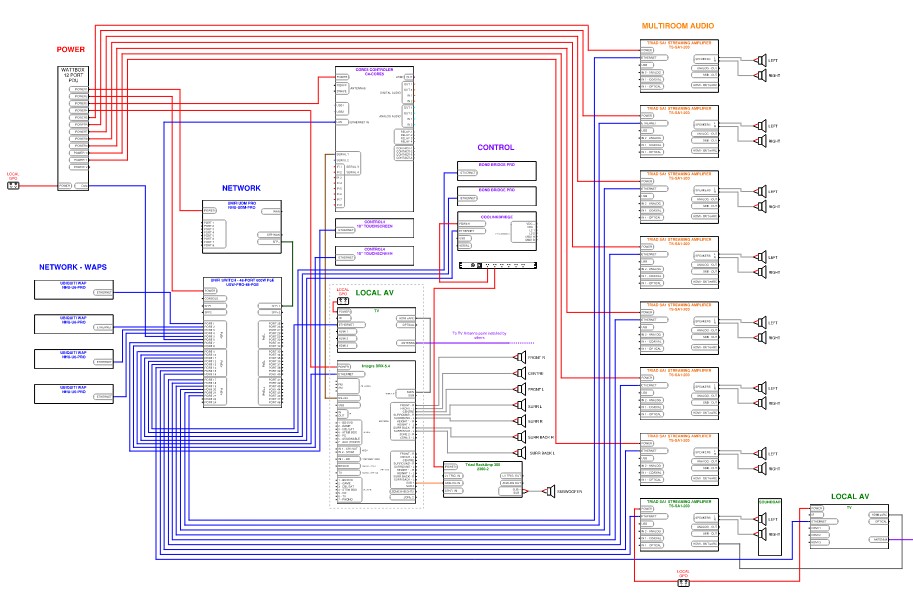

Schematics
Customized technology schematics for every component in the floorplan layout, guaranteeing precise and consistent installation of all hardware on site.
